PRODUCT

4_PRODUCT_Meowkit_Retro_White_1

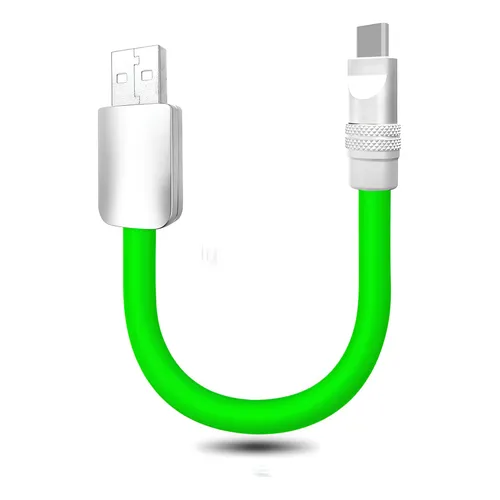

USB_Type-C_Cable

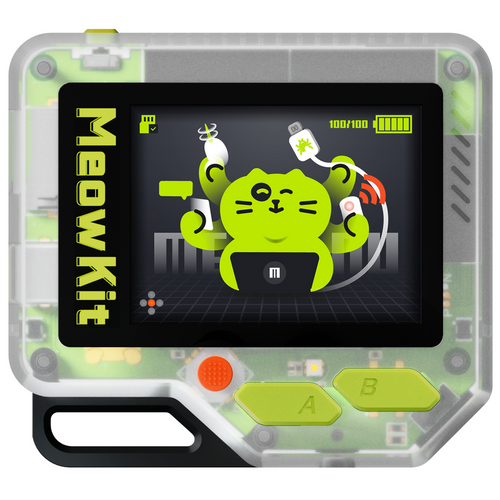

4_PRODUCT_MeowKit_Transpant_Limited_edition_1
EXPLORE MORE

1,423+ Backers Worldwide


TECH SPECS

Mainboard

FR4 multilayer board with ENIG finish.
main_pcb
5_pcb

Storage.

Lexar 633x, 32 GB.
20260429-2-09

GPIO.

1×16-pin (2.54 mm) Dupont female expansion header.
20260505-12

USB-C.

Bootloader, DFU, JTAG, Serial, HID, and Mass Storage — seamlessly integrated into a single port for development, debugging, and experimentation.
7_USB_C__2

EDC Lanyard hole.

CNC-machined 6061 aluminum with hard anodized finish for durable, lightweight carry use.
9_edc_lanyard

Battery.

1200mAh Li-ion battery.
AXP173 intelligent power management.
USB-C charging with 5V input.
10_pcb

Audio.

Output Speaker: 1811-8Ω 1w Headphone: 3.5 mm jack.
11_audio

Infrared

RX wavelength: 950 nm (±100 nm)
RX carrier: 38 KHz (+/-5%)
12_infrared_2
TX wavelength: 930~970 nm
TX carrier: 0-2 MHz
TX power: 280 mW

12_infrared_1
Press for 1 second to start.
Hold for 3 seconds to power off.
8_power_on
Reset：
Briefly short the RESET and GND pins on the GPIO header using a jumper wire or Dupont pin.

The device will restart automatically.
Boot ：
Press the internal BOOT button through the rear access hole while powering on the device to enter bootloader mode.

14_reset_boot
